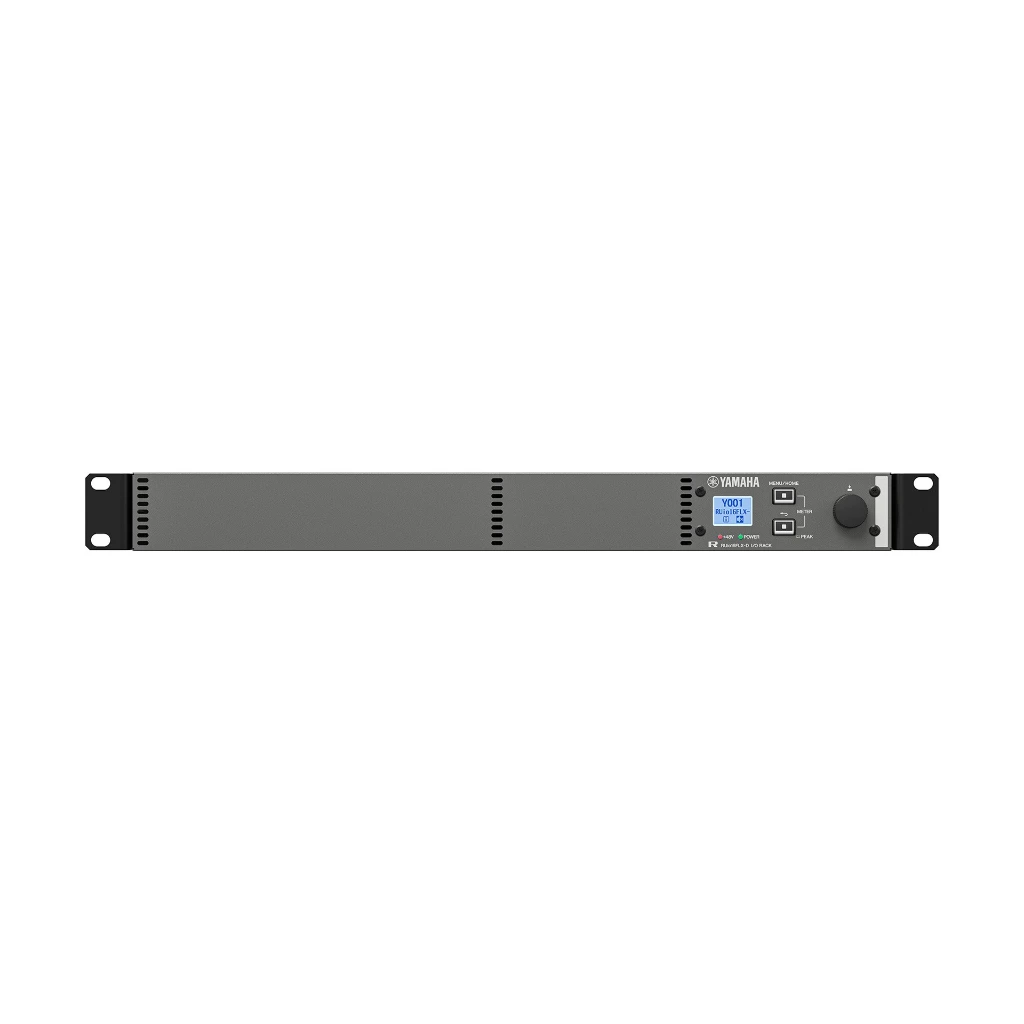

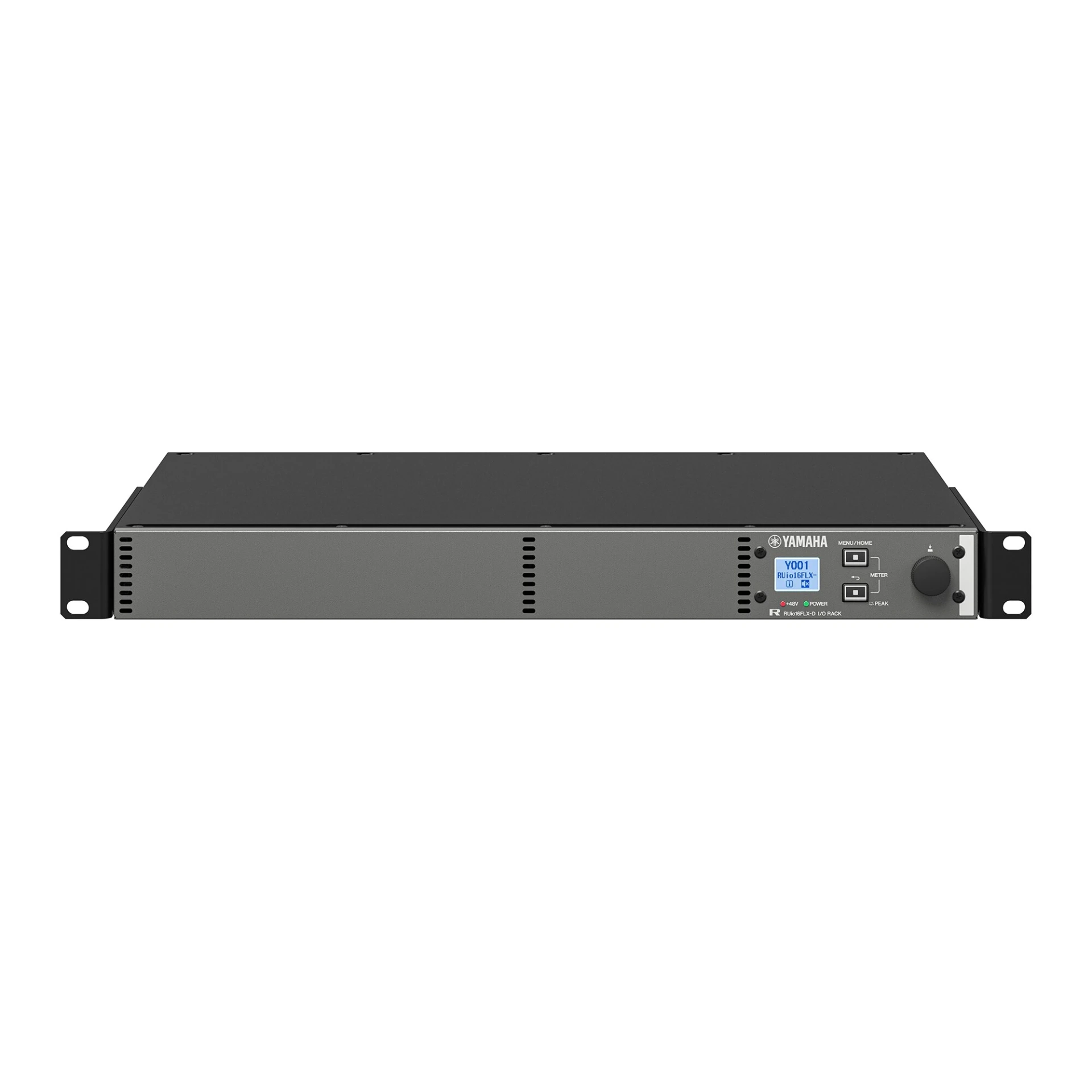

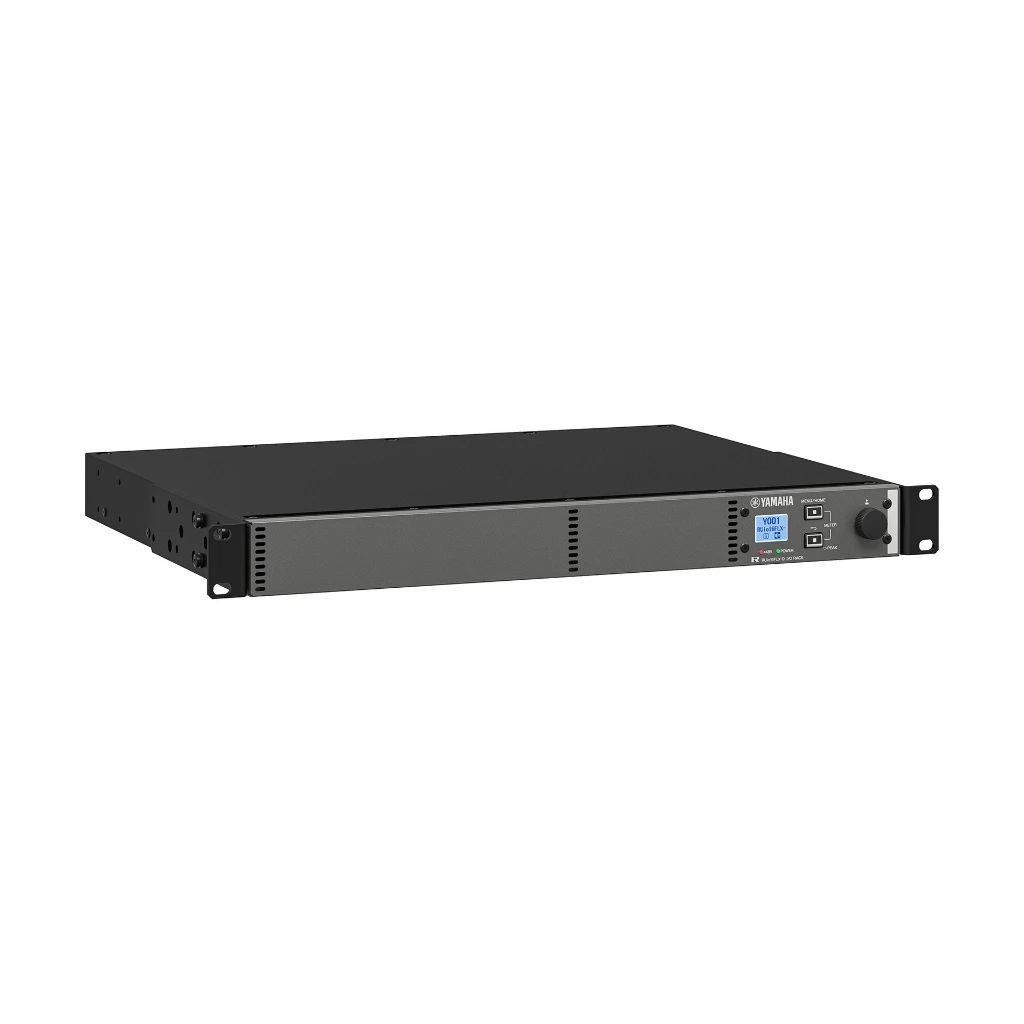

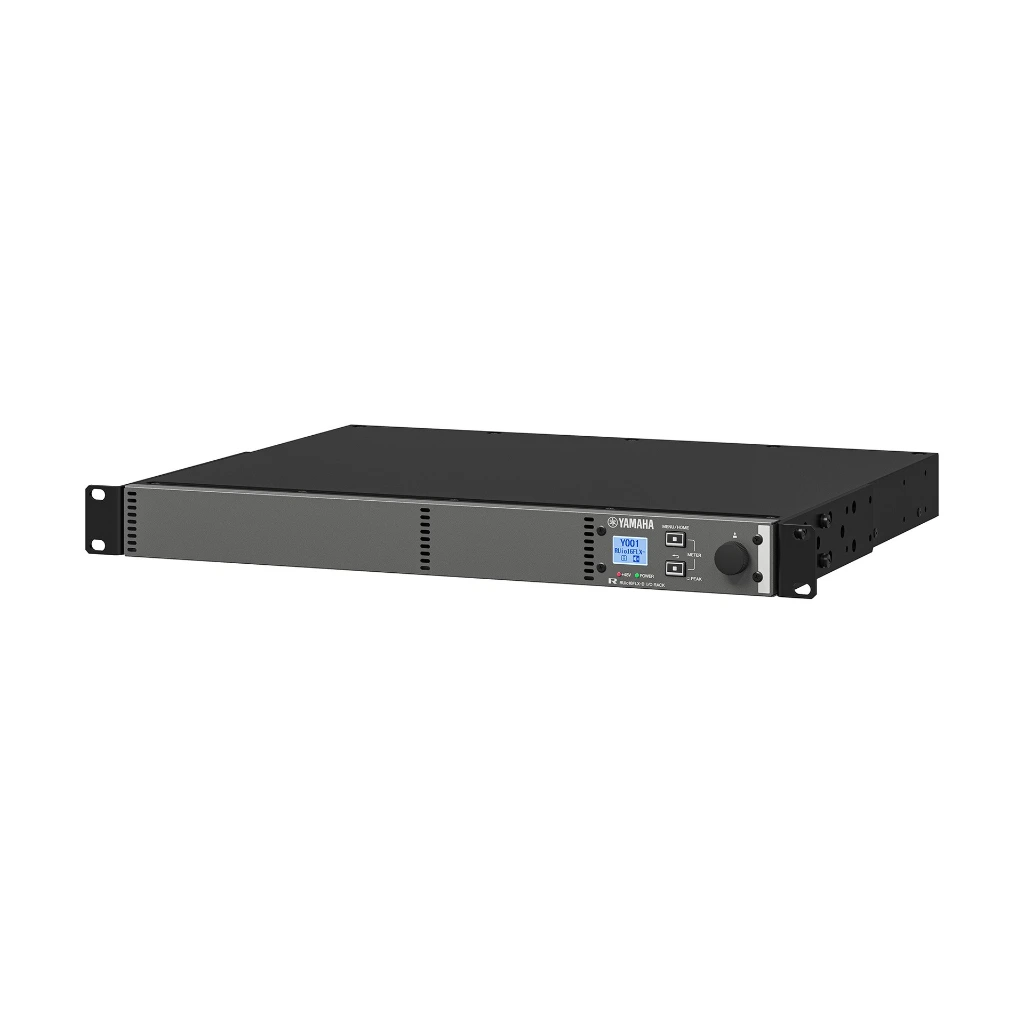

Yamaha RUio16FLX-D 1U 16 kanaler I/O til Dante I/O





Yamaha RUio16FLX-D 1U 16 kanaler I/O til Dante I/O

Den Dante-kompatible RUio16FLX-D gir deg 16 fleksible kanaler som kan konfigureres som analog input, analog output eller AES/EBU output. Det gjør det enkelt å sette opp systemer sammen med Yamahas digitale miksere og prosessorer.

Kildekanaler kan velges i grupper på to, og den fleksible I/O-konfigurasjonen gjør RUio16FLX-D godt egnet for utvidelse av eksisterende systemer.

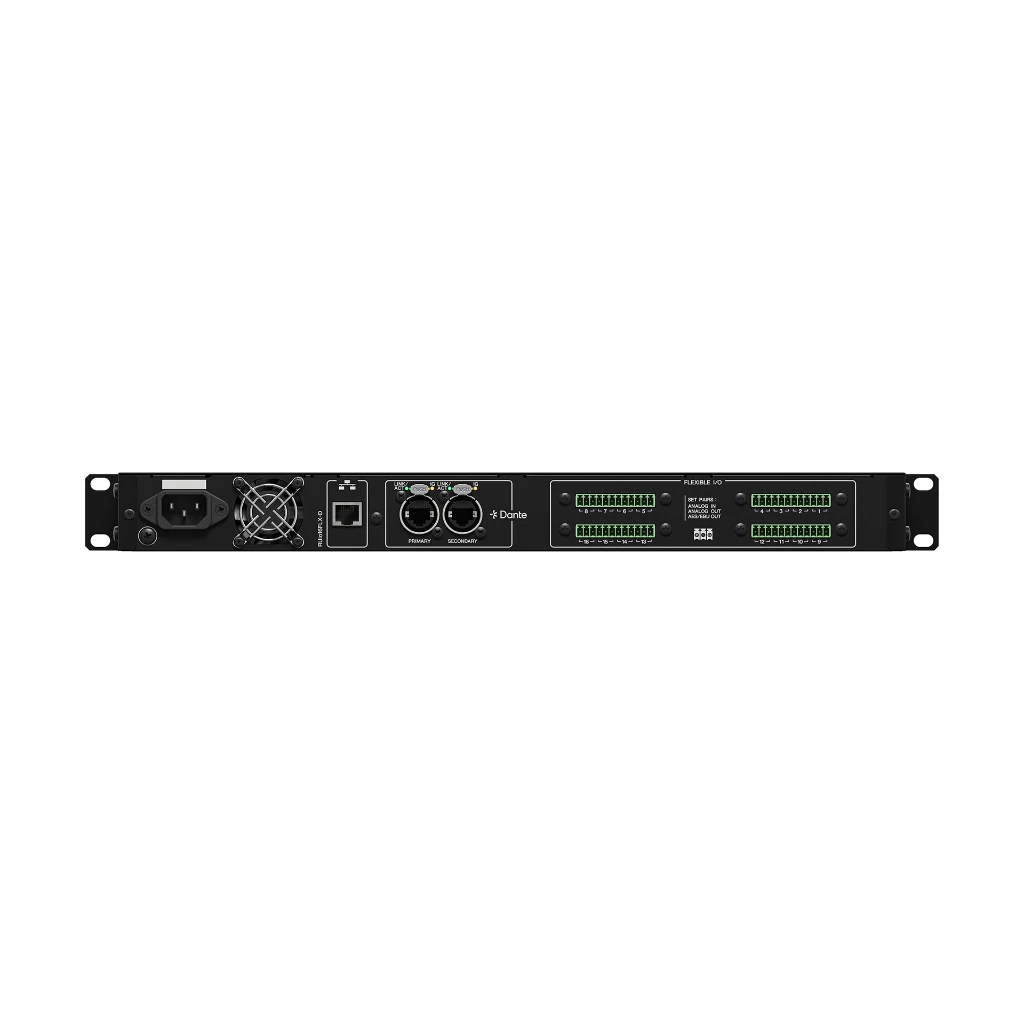

I/O: 16 kanaler med fleksibel I/O via Euroblock-kontakter (analog input, analog output eller AES/EBU output)
Dante: 16 receive-kanaler og 16 transmit-kanaler
Lokal skjerm og kontroll av gain- og phantom power-innstillinger
Strømforbruk: 45 W
Mål (B x H x D): 480 × 44 × 369 mm
Nettovekt: 4,0 kg

Legg til i ønskeliste

Kontakt oss

Varenummer: RUio16FLX-D

Alternative produkter

General specifications	I/O Connectors	Analog Input	16 (Flexible I/O)
		Analog Output	16 (Flexible I/O)
		AES/EBU Output	16 (Flexible I/O)
	Sampling frequency rate	External	44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm +4.1667%, +0.1%, −0.1%, −4.0% ±200 ppm
	Signal delay		Less than 1.7 ms@Fs=96 kHz, 2.0 ms@Fs=48 kHz. RUio16FLX-D INPUT to RUio16FLX-D OUTPUT connect with DM5 using Dante. Dante Receive Latency set to 0.25 ms
	Total harmonic distortion		Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN : 0 dB into 10k Ω, Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN: +64 dB into 10k Ω
	Frequency response		+0.5, –1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs= 48 kHz or 96 kHz
	Dynamic range		114 dB typ., DA Converter, 109 dB typ., Input to Output, GAIN: 0 dB
	Hum & noise level	Equivalent input noise	-128 dBu typ., GAIN: +64 dB
		Residual output noise	-88 dBu, main stereo channel off
	Crosstalk		INPUT: -100 dB, adjacent inputs, GAIN: 0 dB, @1 kHz, OUTPUT: -100 dB, input to output, @1 kHz
	Power requirements		100–240 V, 50 Hz/60 Hz
	Power consumption		45 W
	Dimensions	W	480 mm (18.9”)
		H	44 mm (1.7”)
		D	369 mm (14.5”)
	Net weight		4.0 kg (8.8 lb)
	Accessories		Read This First × 1, AC Power cord × 1, Euro block plug mini 3pin x 16, Cable tie x 16
	Others		NC Value: Fan Speed LOW: NC=20 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 to 40°C, Storage temperature range: -20 to 60°C

Spesifikasjoner

Produsent

Yamaha
