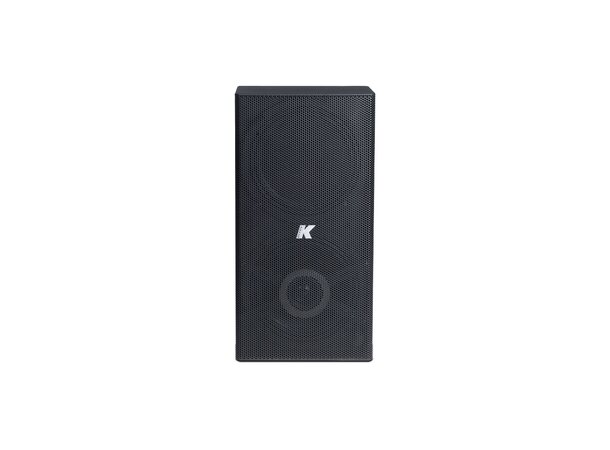

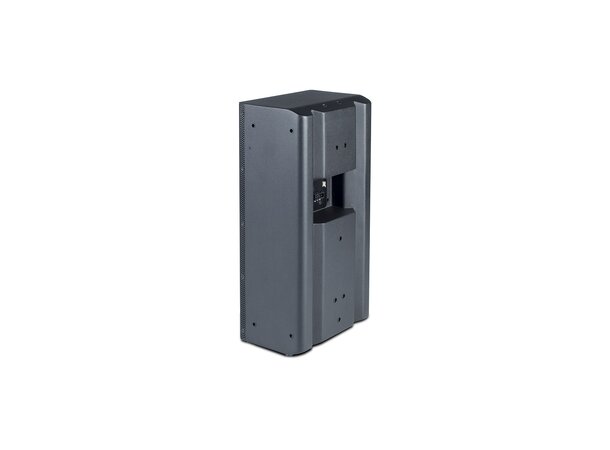

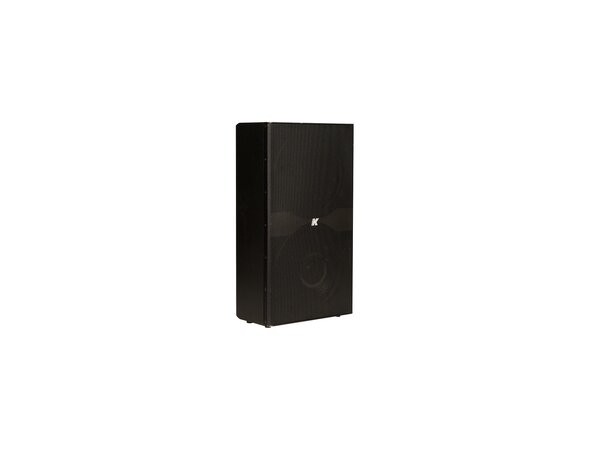

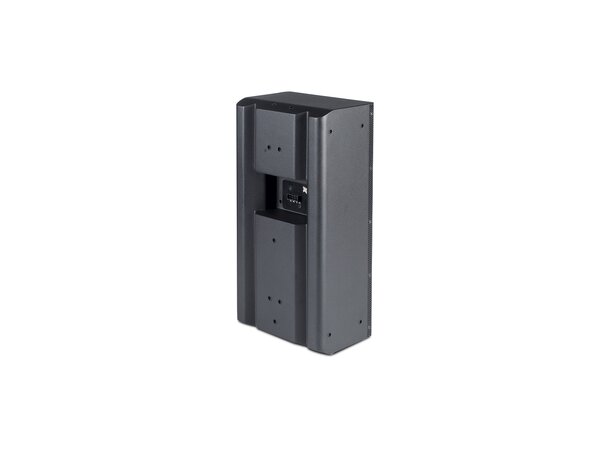

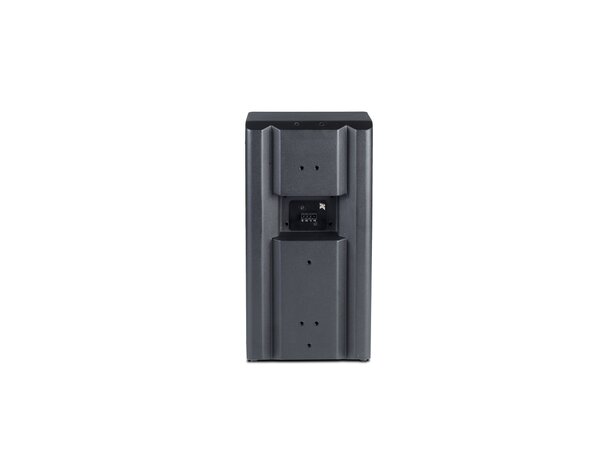

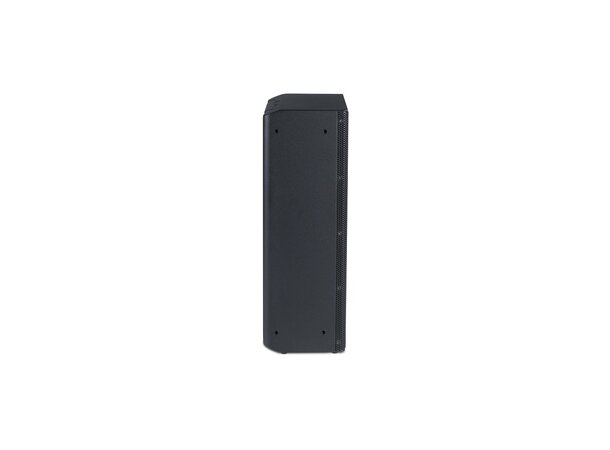

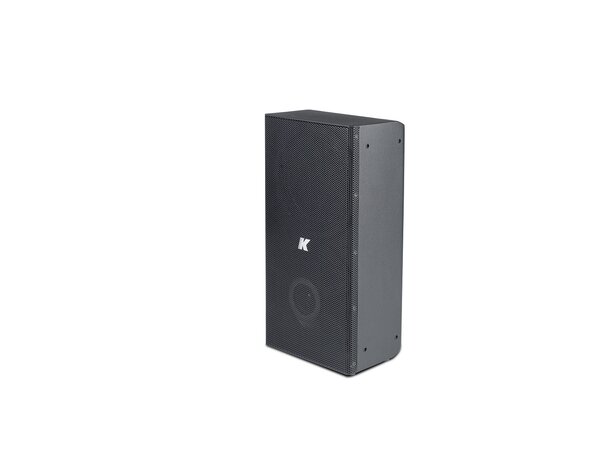

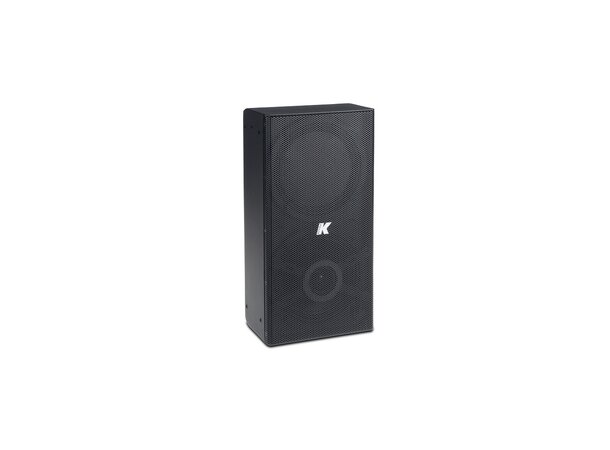

K-Array Domino KFC26 Cinema Custom Paint

Specifications

General

• Type:

  Point source

• Transducers:

  6" neodymium magnet woofer
  2" neodymium magnet woofer (1.1" dome tweeter, in the KF26C models)
  6" passive radiator

• Frequency Response:

  50 Hz - 19 kHz (-6 dB)

   (1)

• Sensitivity (1W/1m):

  90 dB

• Max SPL:

  115 dB (peak)

   (2)

• Rated Power:

  160 W

• Coverage:

  V. 90° | H. 90°
  V. 140° | H. 140° (only for the KF26C and KFC26M models)

• Connectors:

  4PIN euroblock connector (included)
  2PIN euroblock connector (included, only for the KF26C and KF26CM models)

• Nominal Impedance:

  8 O / 32 O selectable
  (only 8O for the KF26C and KF26CM models)

Handling and Finishes

• Dimensions (W x H x D):

  180 x 350 x 118 mm (7.1 x 13.8 x 4.6 in) (3)

   (3)

• Weight:

  6.5 kg (14.3 lb)

• Material:

  Stainless Steel

• Colors:

  Black, White, Custom RAL

• Finishes:

  24K Gold, Polished, Brushed

• Marine Treatments:

  ? ONLY FOR KFC26M  models - An epoxy-based CATHAPHORESIS treatment is applied by electroplating, ensuring a total coating with homogeneity of constant thickness in order to give metal surfaces considerable resistance to chemical and environmental corrosion. A special K-KUIP is included as well.




   (4)

Regulations

• IP Rating:

  IP64
  IP65 (KF26CM or with K-KUIP accessory)

   (5)

• (1) With dedicated preset.
• (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
• (3) Removable rubber feet not included in measures
• (4) Only for the Marine Customization (KFC26M, KFC26MW)
• (5) More complete water protection with K-KUIP accessory.

• Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

• New materials and design are introduced into existing products without previous notice.
